Centerless Grinding Machines / Centerless Grinders :


We are Manufacturer, Supplier and Exporter of Centerless Grinding Machines. This product is also known as Centerless Grinders, OD Grinding Machines, Through Feed Grinding Machines, Infeed Grinding Machines etc. Our setup is situated in Satara, Maharashtra, India and majorly we serve our customers from countries like USA, Germany, Kuwait, Saudi Arabia etc.

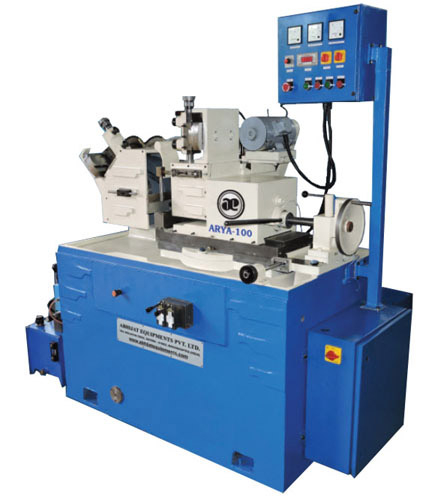

Centerless Grinding Machines  / Centerless Grinders

Centerless Grinding Machines / Centerless Grinders

Abhijat Equipments Pvt. Ltd.' established in the year 1976 is a leading manufacturer & Exporter of Automat Machines & CNC Machines. Abhijat Centerless Grinding Machine `ARYA-100' are Suitable for Thru-feed, In-feed & form Grinding of Metallic and non metallic Components. The Head Stock of Machine is mounted on heavy duty Greaded Casting Base. Spindle is manufactured from alloy Steel with Special treatments for long life accuracy.Regulating Wheel head is Swiveling table arrangement for fast and accurate taper Correction & Taper Grinding.


Standard Accessories :-
• 'Abhijat ' make ARYA -100 centre less grinding machine with Hydraulic dressing
• Electricals
• Works rest blade for through grinding.
• Tool Kit
• Machine Lamp
• Grinding and Regulating wheel with flange.
• Coolant pumps assembly.
• Covers for both wheels.
• White Metallic Bushing for Grinding Wheel Head.
• Manual centralized lubrication for slides.
• DC Variables speed drive for regulating wheel.

Optional Accessories:-
• Wheel balancing stand
• Anti - Vibration Pads.
• Magnetic coolant seperatar 100 LPM
• Arbour for wheel balancing stand
• Additional Grinding wheel flange
• Additional Regulating wheel flange
• Additional work rest blade through feed.
• Additional work rest blade in feed.

Machine Specifications
Center less Grinding - ARYA - 100
Grinding Capacity Diameter - 2mm (min)
  100 mm (maxi)
Grinding Wheel Diameter - 350mm
Width 100mm
Bore 127mm
Regulating Wheel Diameter - 230 mm
Width 100 mm
Bore 76.2 mm
Speed 20-220 RPM (Step less Variable)

Swivel Angle

Swivel of grinding dresser - +/- 5°

  Swivel of regulating dresser - +/- 5°
Regulating Swivel angle +/- 5° Vertical
Regulating Swivel angle +/- 5° Horizontal

Dresser Operation

Grinding & Regulating Wheel - Hydraulics
Power Requirement Grinding Wheel Motor - 5.5 KW
Regulating Wheel Motor 0.75 KW DC

Coolant Pump motor

0.12 KW
Power Pack Pump 0.18 KW
Dimensions Length - 1900 mm
Width 1500 mm
Height 2000 mm
Net Weight 2200 KG (Approx.)
