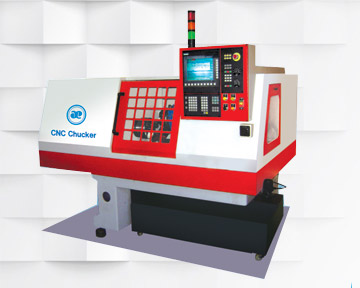

CNC Chuker Deepak-200

CNC Chuker Deepak-200

The `Deepak-42' is a technological revolution in CNC Machine Tool Industry. In today's Competitive market, you need to produce world class Component quickly, accurately and with maximum non-productive time. `Deepak-42' gives fastest through put required by today's Customers.

E Catalague


Video Tour

CNC Turning Machine

E Catalague

CNC Chuker Deepak-200 E Catalague

Video Tour

CNC Turning Machine

CNC Turning Machines (Deepak E32)

CNC Automatic Lathe Deepak - 42

CNC Automatic Lathe Deepak - 32


Abhijat make CNC Lathe is a balance between economy & technology in CNC machine
tool Industry. The basic machine is having rigid headstock mounted on fabricated, stress
relieved machine base. Machine spindle is mounted in precision bearings for higer accuracy. Main Spindle uses A32 Collets operated by pneumatic Cylinder to clamp baror blank.

X & Z axis with linear guideways are operated by C2! C3 Class Precision ball screws


CNC Deepak E32 Catalague

Basic machine consist of :

• LM Slide for X & Z axis
• Collet Chucking
• Centralised lubrication
• Machine Lamp
• Coolant Attachment
• Instruction Manual
• Tool Kit
CNC Turning Machine

CNC System :

• No. of Axis : 2 Nos.
• Manual Data Input
• Multiple repetitive Cycles
• Circular Inter-Polation
• RS.232 interface

Title Description Units Deepak E32
Bar
Capacity-Maximum dia
mm
32
Maximum Hex
mm
28A/F
Maximum Square
mm
22A/F
Maximum Turning Length
mm
100
Maximum Boring/Drilling Depth
mm
40
Spindle
Collet Size
type
A-32
Maximum Spindle Speed
RPM
3000
Spindle Motor Power
Kw
2.2
Feed
X axis Travel
mm
225
Z axis Travel
mm
150
Rapid Traverse rate- X axis
Mtr/min
10
Rapid Traverse rate- Z axis
Mtr/min
10
Rated torque X
N-m
4
Linear Tooling
Number of T-slots
Nos
2
T-Slot Size
mm
15
Tool Shank Size
mm
20x20
CNC System
Controller
Type
GSK/Siemens
802S
Machine Size (LxBxH)
Without Bar Feed
mm
1300x1100x1800
Weight
Net Weight
Kg
500 Kg Approx
Optional Machine Features
Manual Pulse Generator
3 Phase Voltage Stabilizer
Tool Holder
Panel Cooler
Basic Machine Consist of
LM Slide for X & Z axis
Collet Chucking
2M Bar Feed Assly
Telescopic covers
Coolant Attachment
Machine lamp
Instruction Manual
CNC System Details
Siemens 802 S
Number of axis
2
Manual data input
YES
Constant Surface Speed Control
YES
Multiple Repetitive Cycles
YES
-
Tool Selection
4
Communication interface
Rs 232
Tool Compensation & clearance compensation
DIRECT
Graphic Display
YES

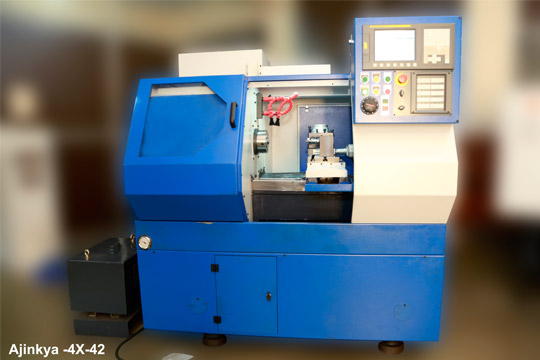

Ajinkya -4X-42 CNC Turning Machine
Ajinkya -4S-42 CNC Turning Machine

Ajinkya -4X-42 CNC Turning Machine


Ajinkya -4S-42 CNC Turning Machine



Basic Machine features :

  • Spindle assembly supported in preloaded precession class bearings of P4 Class Accuracy, cartridge cooled. External encoder feedback
  • Servo spindle and axes drives. Advanced controller
  • Rigid structured stress relieved bed and slides
  • Fully supported tool carrier gear box on Y Axis , aligned linear tool slide,6 rotary and 4 linear tools offer many flexible tooling options.
  • Ball screws and LM ways to all slides
  • hydraulic collet chucking
  • Coolant system and chip tray
  • Machine Lamp , Panel Lamp, Signal Lamp
  • Centralized motorized Lubrication System
  • Totally enclosed machine enclosure with single sliding door, conveniently placed pendant, and ample maintenance accesses
  • Tool Kit and machine manual
  • C axis for accurate spindle orientation.

Optional Machine Features :

  • Chip Conveyor
  • Auto Loading System
  • Silent Gravity Bar Feeder
  • 3 Jaw Chuck
  • Voltage Stabilizer
Ajinkya-4X-42 CNC Turning Machine Specifications
Main Spindle   Machine Type
Spindle speed 4000 r.p.m No of NC Axis 4
Spindle Motor 5.5 KW Max turning diameter 42 mm
Spindle collet chuck   Turning Length Max mm 160 mm
Spindle Nose A2-5 Rapid traverse 15 m/min
Motorized tools   No of tools
No of motorized tools 6 (3 Axial + 3 radial) OD tools 6
Motorized tools speed 4000 Max ID tools 4
Max Drilling Dia 10 mm Driven tools 6 (3 Axial + 3 radial)
Max tapping size M8 Tool shank size 16x16 mm
Overall size L*W*H 2500*1800*2000 mm Boring bar 20 mm
M/c Weight
2800 Kg.

ARYA-100 Centreless Grinding Machine

Ajinkya -4S-42 CNC Turning Machine


Abhijat Centreless Grinding Machine ARYA-100 are Sutable for Thru-Feed, In-feeed and from Grinding of Metallic Components. The Head Stock of Machine is mounted on heavy duty Graded Casting Base. Spindle is manufactured from alloy Steel with Special treatment for long life accuracy. Regulating Wheel head is Swiveling table arrangment fpr fast and accurate taper Correction and Taper Grinding.



Machine Specifications
Centreless Grinding - ARYA - 100
Grinding Capacity
Diameter - 2mm (min)
100mm(maxi)
Grinding Wheel
Diameter - 350mm
Width
100mm
Bore
127mm
Regulating Wheel Diameter - 230mm
Width
100mm
Bore
76.2mm
Speed
20-220 RPM (Step less Variable)
Swivel Angle
Swivel of grinding dresser - ±5°
Swivel of regulating dresser - ±5°
Regulating Swivel Angle
±5° Vertical
Regulating Swivel Angle
±5° Horizontal
Dresser Operatioon
Grinding Wheel Motor - 5.5 KW
Regulating Wheel Motor
0.75 KW DC
Coolant Pump motor
0.12 KW
Power Pack Pump
0.18 KW
Dimensions
Lenght - 1900 mm
Width
1500 mm
Height
2000 mm
Net Weight
2200 KG (Aoorox.)

CNC Arya-100 Abhijat Machine E-Catalague


See our Videos

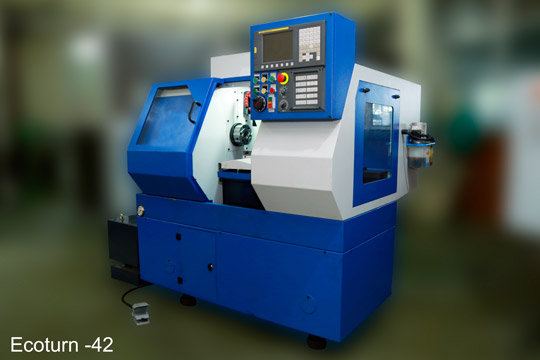

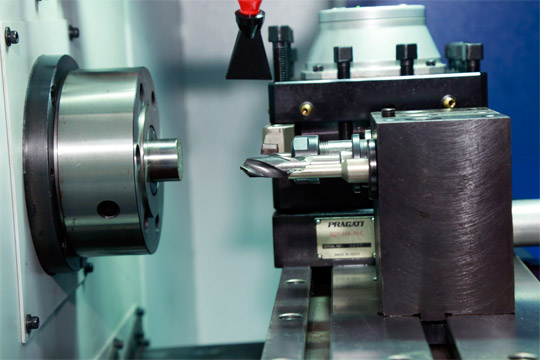

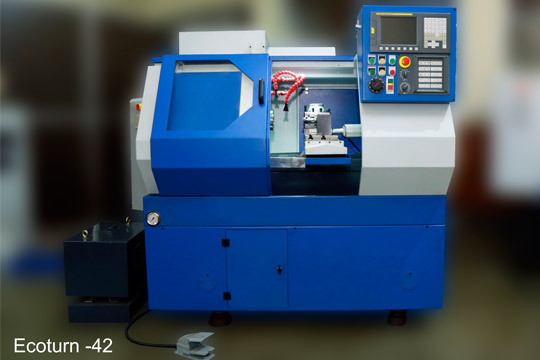

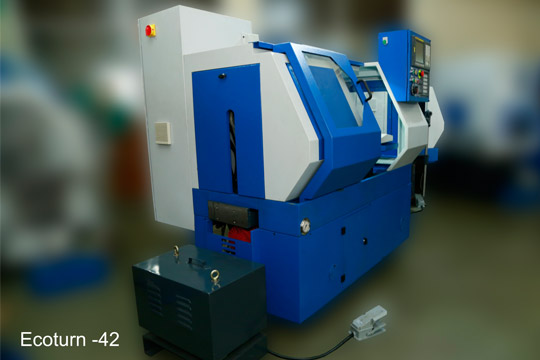

ECO-TURN 42



We are glad to introduce oue new CNC product Eco-turn 42 turining machine. In today's era of technology, this is an economical machine with casting body having dual clamping arrangement of collate and chuck. Tailslock arrangement is also provided as per requirement. Following are the advantages of machine.

Advantages :

  • Main spindle uses A42 collets with replaceable135 mm 3 jaw chuck hydraulically op erated.
  • Swing over bed 450 mm.
  • Through spindle bar capacity Ø42mm
  • Bar feed arrangement can be provided.
  • Hydraulically operated tail stock.
  • USB port.
  • Graphic display.
  • Choice of SIEMENS, FANUC, MITSUBISHI controller.
  • Casting body.
  • Compact food print.


CNC Eco-turn 42 E-Catalague
