CNC Six Station Turret Lathes :


CNC Six Station Turret Lathes

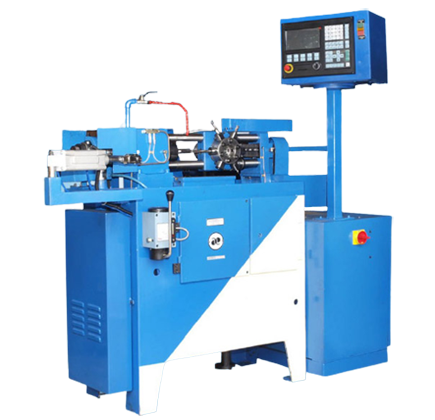

ABHIJAT" make Six Station CNC turret lathes are designed to cater both bar work and pneumatic chuck work. Preturned forged or Cast blanks can be used. The basic machine with 6 position turret, enables variety of turning, drilling. threading operation to be done in single set up.

MACHINE CONSTRUCTION: The machine base iS a rigid fabricated construction. The spindle is mounted in precision ball bearings. The bearing are mounted directly in the headstock, for higher accuracy and rigidity.
The drive pulley is mounted outside the headstock for ease of speed change.

STANDARD EQUIPMENT :
Ball Screw operated CNC, Six Position turret, Mechanical Hand / Pneumatic Operated Collet Chucking Equipment, Centralised Lubrication, Guarding

EXTRA EQUIPMENT AND ACCESSORIES :

Coolent Equipment, All Tool Holders for Cross / Vertical Slides & Turret, Hand Operated Chuck with Back Plate, Long Turning Attachment, Bar Feed Attachment, Cross Slide, Machine Lamp, Vertical Slide Microprocessor Piece Counter cum Tool Life Indicator We also offer any special tooling attachments as per customer's requirements.

Basic machine features:
• User friendly controller
• Motorised lubrication system
• Precision ground ballscrew
• Machine enclosure with sliding door
• Ergonomically located Pendant with easy manuoverability
• Machine lamp
• Instruction and opearation manual

Optional machine features :
• Coolant system.
• Manual pulse generator
• Pnumatic low cost autoloading attachment

CNC system :
• Siemens 802S
• Number of axis-1
• Manual data input
• Part program storage and Editing
• Constant surface speed control
• Multiple repetitive cycles
• RS 232 interface


Machine Specification

No.
Title
Parameter
UOM
Auto Cut 25
Auto Cut 32
1
Capacity
Collet Size
Type
A25
A42
3 jaw chuck size (optional)
mm
Ǿ 110
Ǿ 110
Round bright bar
mm
25
32
Hexagonal bright bar
mm
22 A/F
28 A/F
Square bright bar
mm
18 A/F
22 A/F
2
Axis
Number of axis
Nos.
1
1
Z axis stroke
mm
100 (max)
200 (max)
Ballscrew diameter
mm
20
20
Ballscrew pitch
mm
5
5
Rapid traverse rate
Mtr/min
10
10
Motor rated torque
Nm
4
4
3
Spindle Drive
Motor Power
Kw
1.5
2.2
Motor Speed(Variable)
rpm
50-3000
50-1500
Hole through spindle
mm
25
32
4
Turret
Number of stations
nos
6
6
Tool reception bore
Mm(in)
Ǿ 19.05 (Ǿ)3/4)
Ǿ19.05(Ǿ3/4)
Diameter of turret
mm
Ǿ 120
Ǿ 120
5
CNC system
Controller
type
Neri / Simens
Neri / Simens
6
Accuracy
Positioning accuracy
mm
0.015
0.015
Repeatability
mm
0.005
0.005
7
Machine size & Weight
LxWxH
mm
1500x1350x1450
1500x1350x1450
M/cWt
Kg.
800(approx)
900(approx)
